Manage GCP costs by using CCM on Harness Self-Managed Enterprise Edition

This topic walks you through the steps required to set up CCM for GCP in a self-managed platform.

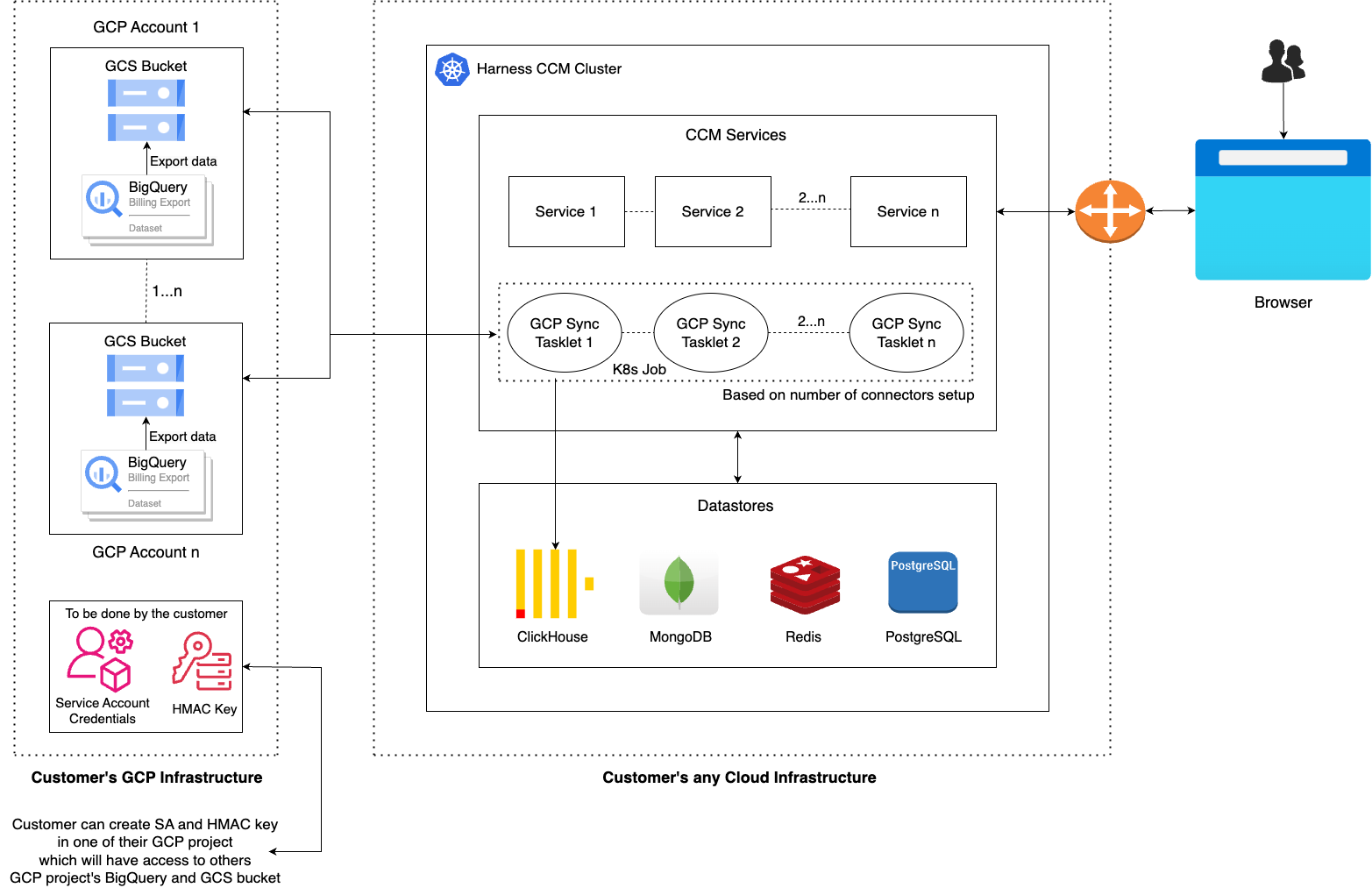

Figure: GCP CCM Self-Managed Enterprise Edition architecture diagram

Major Components​

  • K8s Job: In the cloud-hosted infra, a K8s Job is configured to run daily. This job performs all necessary steps to ingest GCP billing data from BigQuery to ClickHouse, utilizing a GCS bucket as an intermediary and then eventually to ClickHouse table.
  • BigQuery: The GCP project's billing data resides in a BigQuery table.
  • Google Cloud Storage (GCS): Billing data is stored in the parquet format in GCS bucket. Parquet, as a column-oriented format, represents a better interchange format since it is inherently compressed and faster for BigQuery to export and ClickHouse to query.
  • ClickHouse: Serves as the datastore where GCP billing data is finally ingested.
  • Service Account Key: It is a JSON file that contains the information needed to authenticate and authorize requests made by an application or a service.
  • HMAC Key: HMAC (Hash-based Message Authentication Code) keys are used for authentication and ensuring the integrity of requests made to GCS.

Data Flow​

Steps

  1. Authenticate and initialize clients for BigQuery, GCS and ClickHouse using SA and HMAC keys.
  2. Create a dedicated GCS bucket to store billing data in Parquet format. The sub-folders will be organized based on timestamps or dates to precisely track when each bucket was created.
  3. Initiate an export query to transfer data from BigQuery to the GCS bucket in Parquet format with GZIP compression. The export query employs a SELECT statement, resulting in charges based solely on the data scan.
  4. Check if the billing table exists in ClickHouse; create it if not.
  5. Initiate an insert query to efficiently move data from the GCS bucket to the ClickHouse table in batch.

You need to perform the following tasks to set up CCM for GCP:

  1. Create Service Account
  2. Create HMAC Key
  3. Deploying workloads via Helm Charts
  4. Handling Kubernetes Secrets

GCP Setup​

Step 1: Create Service Account​

A GCP service account is needed to be able to authenticate and perform operations on the customer’s BQ and GCS buckets.You will need one SA and its JSON key during onboarding.

  1. Before creating a Service Account, you have to create Custom Role and provide necessary permissions to it. Follow these steps to create Custom Role and add below permissions:
bigquery.datasets.create
bigquery.datasets.get
bigquery.datasets.getIamPolicy
bigquery.jobs.create
bigquery.tables.create
bigquery.tables.export
bigquery.tables.get
bigquery.tables.getData
bigquery.tables.list
storage.buckets.create
storage.buckets.get
storage.objects.list
storage.objects.create
storage.objects.get
  1. Follow these steps to create Service Account and add the above IAM custom role to it.
  2. Follow these steps to create Service Account Credential Key.

Please refer this doc if you encounter any difficulties understanding the process. It provides a comprehensive explanation of all steps accompanied by screenshots.

Step 2: Create HMAC Key​

To be able to make use of ClickHouse methods to ingest data from GCS, you will need HMAC key.

  1. Follow these steps to create HMAC key for the Service Account created above.

Deploying workloads via Helm charts​

Step 1: Clone chart repository​

git clone git@github.com:harness/helm-charts.git
cd main/src/harness

Step 2: Already using harness services OnPrem? Upgrade charts​

helm get values <chart-name> -n <namespace> > override.yaml

# update override.yaml with ccm specific configuration provided below
helm upgrade <chart-name> <chart-directory> -n <namespace> -f override.yaml

Example: helm upgrade ccm . -n harness -f old_values.yaml

global:
  ccm:
    enabled: true
    gcpProjectId: "<gcpServiceAccountProjectId>"
  smtpCreateSecret:
    enabled: true # Update the default values of "smtp-secret" as mentioned in below step else application startup will fail.
  license:
    ng: <SMP NG License with CCM>
  database:
    clickhouse:
      enabled: true

ccm:
  ce-nextgen:
    cloudProviderConfig:
      GCP_SERVICE_ACCOUNT_EMAIL: "<gcpServiceAccountEmail>"
  batch-processing:
    serviceAccount:
      create: true
      annotations: {}
      name: "batch-processing-default"
    secrets:
      fileSecret:
      - volumeMountPath: "/opt/harness/svc"
        keys:
        - key: ce-gcp-home-project-creds
          path: "ce-gcp-home-project-creds.json"
        - key: ce-batch-gcp-credentials
          path: "ce-batch-gcp-credentials.json"
      default:
        ce-gcp-home-project-creds: ""
        ce-batch-gcp-credentials: ""
    gcpConfig:
      GCP_SMP_ENABLED: true
      bucketNamePrefix: "harness-ccm-%s-%s" # Update the bucket name prefix if you want, but keep double %s for project and region

Step 3: Handling Kubernetes Secrets​

On installing/upgrading charts you will see K8s secrets created with default value in the cluster. You need to update these secrets with the above noted values. Before updating the secrets you need to convert the secret into base64 encoded, let say the HMAC_ACCESS_KEY value is: accessKey, then it would it be stored as YWNjZXNzS2V5. After changing secrets, we will provide directives to kubectl delete the corresponding pods in order for your release to inherit new changes.

Command: echo -n "accessKey" | base64

The -n option with echo prevents the trailing newline character from being included in the output. To encode service account credential JSON file, use below command:

base64 -i service-account.json -o service-account-base64-encoded.txt

Following are the secrets specific to CCM services:

1. batch-processing kubectl edit secret batch-processing -n <namespace>

HMAC_ACCESS_KEY: <hmacAccessKey>
HMAC_SECRET_KEY: <hmacSecretKey>

2. batch-processing-secret-mount kubectl edit secret batch-processing-secret-mount -n <namespace>

ce-gcp-home-project-creds: <gcpServiceAccountCredentials>
ce-batch-gcp-credentials: <gcpServiceAccountCredentials>

3. cloud-info-secret-mount [config-file]

kubectl edit secret cloud-info-secret-mount -n <namespace>
config.toml.dist
environment = "production"
debug = false
shutdownTimeout = "5s"

[config.vault]
enabled = false
address = ""
token = ""
secretPath = ""

[log]
format = "json"
level = "info"

[metrics]
enabled = false
address = ":9090"

[jaeger]
enabled = false

# Configure either collectorEndpoint or agentEndpoint.
# When both are configured collectorEndpoint will take precedence and the exporter will report directly to the collector.

collectorEndpoint = "http://localhost:14268/api/traces?format=jaeger.thrift"
agentEndpoint = "localhost:6831"
# username = ""
# password = ""

[app]
address = ":8000"
basePath = "/"

[scrape]
enabled = true
interval = "24h"

[provider.amazon]
enabled = false

# See available regions in the documentation:
# https://aws.amazon.com/about-aws/global-infrastructure/regions_az
# region = "us-east-1"
# Static credentials
# accessKey = ""
# secretKey = ""
# Shared credentials
# sharedCredentialsFile = ""
# profile = ""
# IAM Role ARN to assume
# assumeRoleARN = ""
# http address of a Prometheus instance that has AWS spot price metrics via
banzaicloud/spot-price-exporter.
# If empty, the cloudinfo app will use current spot prices queried directly from
the AWS API.

prometheusAddress = ""
# advanced configuration: change the query used to query spot price info from
Prometheus.

prometheusQuery = "avg_over_time(aws_spot_current_price{region=\"%s\",
product_description=\"Linux/UNIX\"}[1w])"

# Amazon pricing API credentials (optional)
# Falls back to the primary credentials.

[provider.amazon.pricing]
# See available regions in the documentation:
# https://docs.aws.amazon.com/awsaccountbilling/latest/aboutv2/using-pelong.html
# region = "us-east-1"
# Static credentials
# accessKey = ""
# secretKey = ""
# Shared credentials
# sharedCredentialsFile = ""
# profile = ""
# IAM Role ARN to assume
# assumeRoleARN = ""

[provider.google]
enabled = false
# base64 encoded credentials in json format (base64 encoded content of the
credential file)
# credentials = ""
# credentialsFile = ""
# project = ""

[provider.alibaba]
enabled = false
# region = ""
# accessKey = ""
# secretKey = ""

[provider.oracle]
enabled = false
# tenancy = ""
# user = ""
# region = ""
# fingerprint = ""
# privateKey = ""
# privateKeyPassphrase = ""
# configFilePath = ""
# profile = ""

[provider.azure]
enabled = true

# subscriptionId = ""
# Client credentials
clientId = "<clientId>"
clientSecret = "<clientSecret>"
tenantId = "<tenantId>"
[provider.digitalocean]
enabled = false

[provider.vsphere]
enabled = false
# accessToken = ""

[management]
enabled = true
address = ":8001"

[serviceloader]
serviceConfigLocation = "./configs"
serviceConfigName = "services"
format = "yaml"

[store.redis]
enabled = false
host = "localhost"
port = 6379

[store.cassandra]
enabled = false
hosts = "localhost"
port = 9042
keyspace = "cloudinfo"
table = "products"

[store.gocache]
expiration = 0
cleanupInterval = 0
config-file: <config-file>
gcp-creds: <gcpServiceAccountCredentials>
# In config.toml.dist provided below:
[provider.google]
enabled = true

# base64 encoded credentials in json format (base64 encoded content of the credential file)
# credentials = ""

credentialsFile = "/config/gcp-creds.json"
project = "<gcpServiceAccountProjectId>"

4. ceng-secret-mount

kubectl edit secret ceng-secret-mount -n <namespace>

ceng-gcp-credentials: <gcpServiceAccountCredentials>

5. nextgen-ce configmap

kubectl edit configmap nextgen-ce -n harness

Update below fields:

GCP_PROJECT_ID: <gcpServiceAccountProjectId>
GCP_SERVICE_ACCOUNT_EMAIL: <gcpServiceAccountEmail>

Following are some secrets from platform-service that you will need to update:

  1. smtp-secret [Required to support budget alerts E-mail]

    kubectl edit secret smtp-secret -n <namespace>

    SMTP_HOST: <SMTP_HOST>
    SMTP_PASSWORD: <SMTP_PASSWORD>
    SMTP_PORT: <SMTP_PORT>
    SMTP_USE_SSL: <SMTP_USE_SSL>
    SMTP_USERNAME: <SMTP_USERNAME>
info

Run kubectl edit pvc wal-volume-harness-timescaledb-0 -n <namespace> and increase to 100Gi. It is used by recommendations and anomalies features within CCM services.

GCP Connector Setup​

Authorize Service Account to access BigQuery and GCS buckets in other projects​

In the Grant Permissions step of GCP Connector flow, follow below steps:

  1. Create same Custom Role with different name in the project for which you are setting up the billing report (refer Step 1 of GCP Setup for creating Custom Role).
  2. Follow these steps to grant role to Service Account to access other project.
  3. Click on Continue to test the connection.

Please refer this doc if you encounter any difficulties understanding the process. It provides a comprehensive explanation of all steps accompanied by screenshots.

info

Not supporting GCP Inventory management in the Choose Requirements step of GCP Connector flow.

Replay GCP Billing Export data​

Step 1: Get GCP Connector details​

Use below API to get GCP Connector details for your account.

Harness API docs

Body:

{
    "filterType": "Connector",
    "types": [
        "GcpCloudCost"
    ]
}

Step 2: Update GCP Sync Replay yaml file​

Use the mapping table to update <placeHolder> value in the yaml with the info got in the first step.

S. No.GCP Connector Fields (connector object)GCP Sync Replay Fields
1image: Path to GCP Sync K8s Job. Example: docker.io/harness/ccm-gcp-smp-signed:10053
2accountIdentifieraccountId
3spec.projectIdsourceGcpProjectId
4spec.billingExportSpec.datasetIdsourceDataSetId
5sourceDataSetRegion: Retrieve this information by checking the details section of the billing export table's dataset.
6identifierconnectorId
7spec.billingExportSpec.tableIdsourceGcpTableName
8replayIntervalInDays: Specify number of days for which you want to replay.
apiVersion: batch/v1
kind: Job
metadata:
  name: gcp-sync-k8s-job
  namespace: harness
  labels:
    job-type: gcp-sync-k8s-job
spec:
  ttlSecondsAfterFinished: 604800
  template:
    spec:
      containers:
      - image: <placeHolder>
        imagePullPolicy: IfNotPresent
        name: python-gcp-sync-container
        command: ["python", "/data-pipeline/gcp_billing_bq_main.py"]
        args: ['{
"accountId": "<placeHolder>",
"sourceGcpProjectId": "<placeHolder>",
"sourceDataSetId": "<placeHolder>",
"sourceDataSetRegion": "<placeHolder>",
"connectorId": "<placeHolder>",
"sourceGcpTableName": "<placeHolder>",
"replayIntervalInDays": "<placeHolder>"
}']
        env:
        - name: CLICKHOUSE_ENABLED
          valueFrom:
            configMapKeyRef:
              name: batch-processing
              key: CLICKHOUSE_ENABLED
        - name: CLICKHOUSE_URL
          valueFrom:
            configMapKeyRef:
              name: batch-processing
              key: CLICKHOUSE_URL_PYTHON
        - name: CLICKHOUSE_PORT
          valueFrom:
            configMapKeyRef:
              name: batch-processing
              key: CLICKHOUSE_PORT_PYTHON
        - name: CLICKHOUSE_USERNAME
          value: default
        - name: CLICKHOUSE_PASSWORD
          valueFrom:
            secretKeyRef:
              name: clickhouse
              key: admin-password
        - name: CLICKHOUSE_SEND_RECEIVE_TIMEOUT
          value: "86400"
        - name: CLICKHOUSE_QUERY_RETRIES
          value: "3"
        - name: HMAC_ACCESS_KEY
          valueFrom:
            secretKeyRef:
              name: batch-processing
              key: HMAC_ACCESS_KEY
        - name: HMAC_SECRET_KEY
          valueFrom:
            secretKeyRef:
              name: batch-processing
              key: HMAC_SECRET_KEY
        - name: SERVICE_ACCOUNT_CREDENTIALS
          valueFrom:
            secretKeyRef:
              name: batch-processing-secret-mount
              key: ce-batch-gcp-credentials
        resources:
          limits:
            cpu: "1"
            memory: 2Gi
          requests:
            cpu: "1"
            memory: 2Gi
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: OnFailure
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
  backoffLimit: 3

Step 3: Apply/Delete GCP Sync Replay yaml file​

kubectl apply -f /<path>/gcp-sync-replay.yaml
kubectl delete -f /<path>/gcp-sync-replay.yaml
info

Job name should be unique. OR delete the existing job and re-apply it.
